ABOUT ROLLING STOCK
ECOLINE is the owner of specialized rolling stock.
The company's operational management currently has
2,500 grain wagons and 2,900 flatcars of 2013-2017 built.

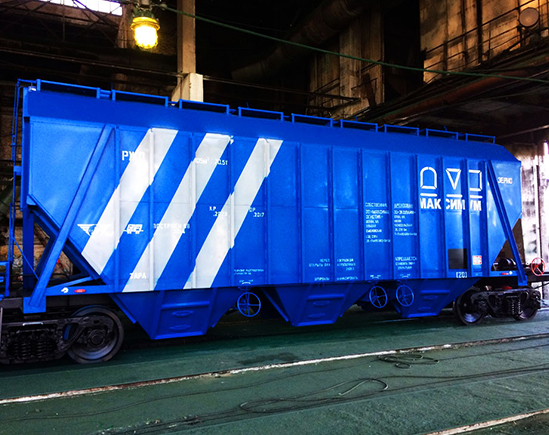

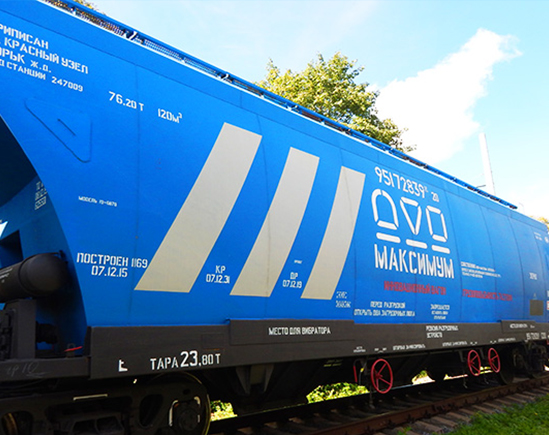

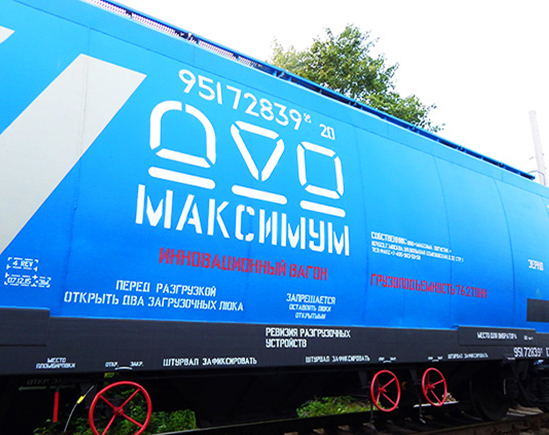

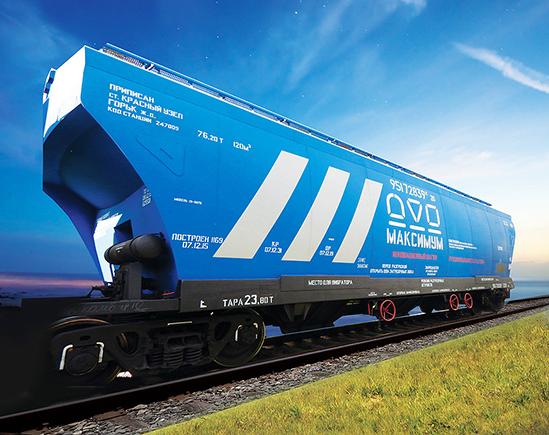

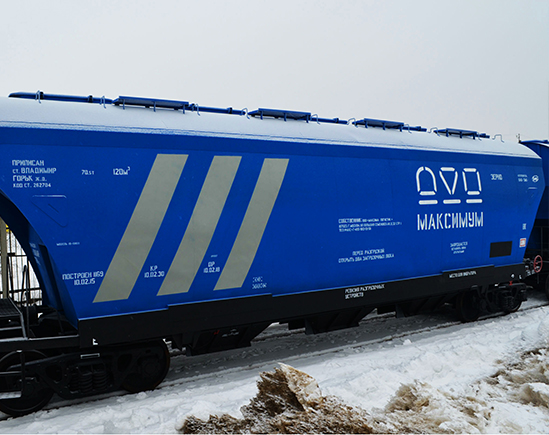

100 innovative model 19-6870 grain wagons
Characteristics 19-6870
| Innovative grain wagon 19-6870 |
|
| Load capacity, T |
76.2 |
| Cubic capacity, m3 |
120 |
| Number of discharge chutes, PCs |
6 |
| Number of charging chutes, PCs |
5 |
| Discharge chute dimensions, mm |
1075x425 |
| Charging chute dimensions, mm |
1592x562 |
| Maximum design load, kN |
245.0 |
| Dimensions as per GOST 9238-83 |
1-Т |
| Wagon base, mm |
10 500 |
| Wagon tare (min), t |
23.3 |
| Wagon tare (max), t |
23.8 |
| Length along pulling faces of automatic couplers, mm |
14 720 |
| Length along tail boom pylons of frame, mm |
13 502 |
| Height from rail level, mm |
4 882 |
Hide

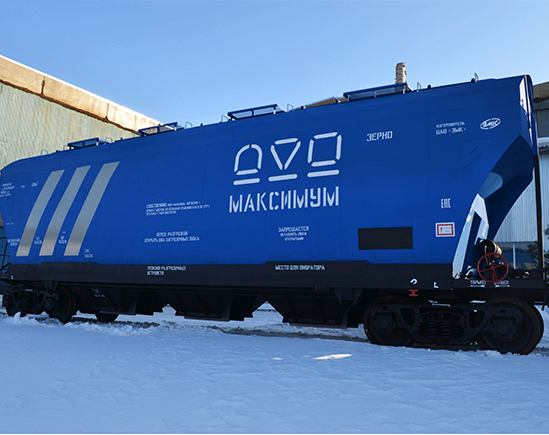

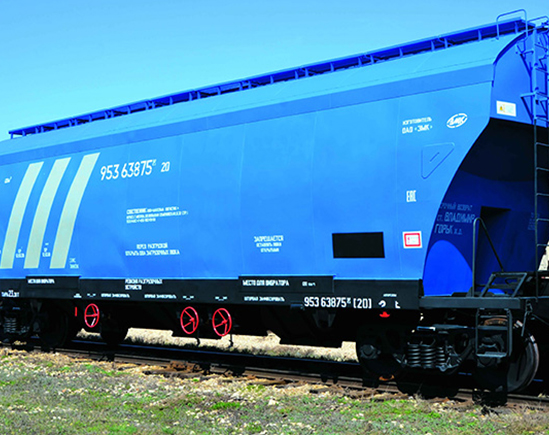

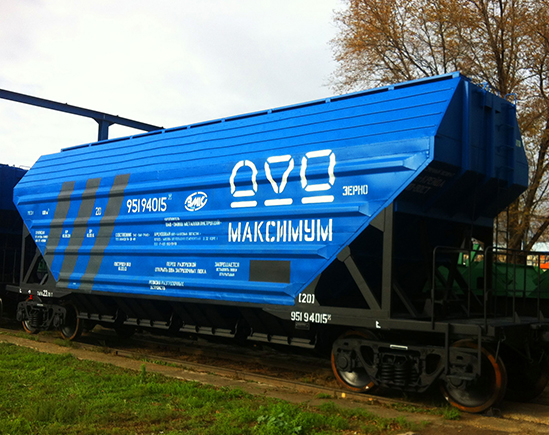

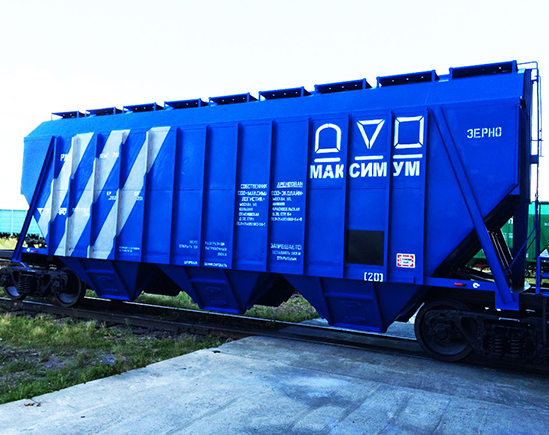

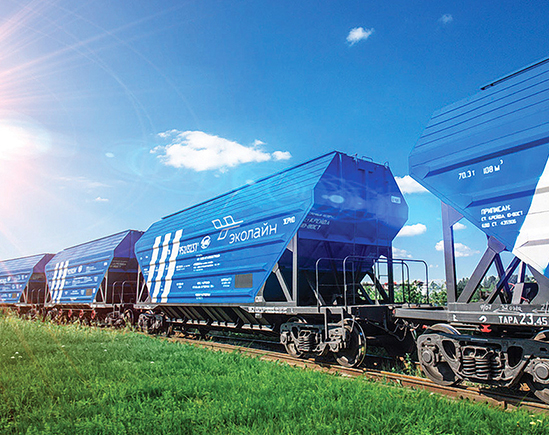

500 model 19-9858 grain wagons
Characteristics 19-9858
| grain wagons 19-9858 |
|
| Load capacity, T |
70,3 |
| Cubic capacity, m3 |
108 |
| Number of discharge chutes, PCs |
8 |
| Number of charging chutes, PCs |
4 |
| Discharge chute dimensions, mm |
1232 х 645 |
| Charging chute dimensions, mm |
1592 х 562 |
| Maximum design load, kN |
230, 5 |
| Dimensions as per GOST 9238-83 |
1-Т, 02-ВМ |
| Wagon base, mm |
10 300 |
| Wagon tare (min), t |
23,2 |
| Wagon tare (max), t |
23,7 |
| Length along pulling faces of automatic couplers, mm |
14 520 |
| Length along tail boom pylons of frame, mm |
13 300 |
| Height from rail level, mm |
4 800 |
Hide

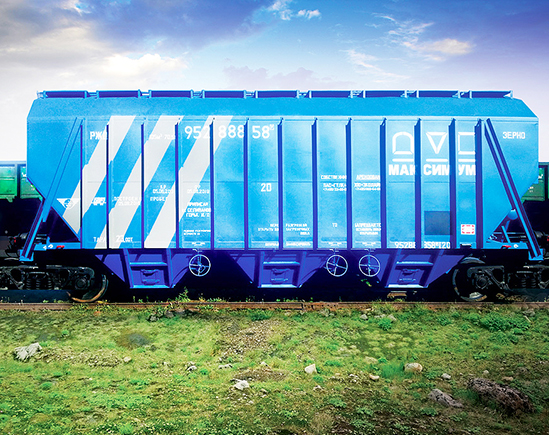

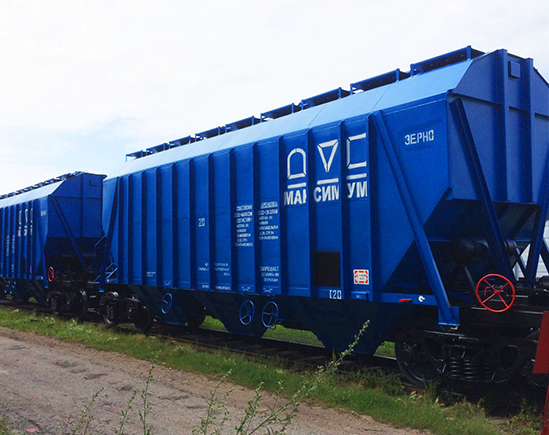

1500 model 19-9950 grain wagons
Characteristics 19-9950
| grain wagons 19-9950 |
|
| Purpose |
transportation of grain, seeds, and similar food cargo |
| Load capacity, T |
70, 5 |
| Cubic capacity, m3 |
105 |
| Number of discharge chutes, PCs |
6 |
| Number of charging chutes, PCs |
4 |
| Discharge chute dimensions, mm |
948х488 |
| Charging chute dimensions, mm |
1638х608 |
| Maximum design load, kN |
230,5 |
| Dimensions as per GOST 9238-83 |
1-Т, 02-ВМ |
| Wagon base, mm |
10 500 |
| Wagon tare (min), t |
23 |
| Wagon tare (max), t |
23,5 |
| Length along pulling faces of automatic couplers, mm |
14 720 |
| Length along tail boom pylons of frame, mm |
13 500 |
| Height from rail level, mm |
4 823 мм |
Hide

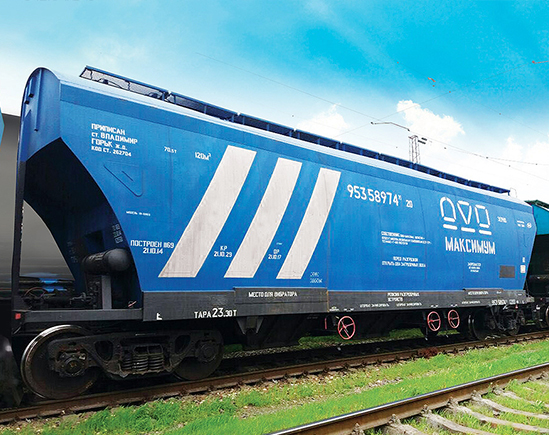

300 model 19-6869 grain wagons
Characteristics 19-6869
| grain wagon |
|
| Load capacity, T |
70,5 |
| Cubic capacity, m3 |
120 |
| Number of discharge chutes, PCs |
6 |
| Number of charging chutes, PCs |
5 |
| Discharge chute dimensions, mm |
1075х425 |
| Charging chute dimensions, mm |
1592х562 |
| Maximum design load, kN |
230,5 |
| Dimensions as per GOST 9238-83 |
1-Т |
| Wagon base, mm |
10 500 |
| Wagon tare (min), t |
23 |
| Wagon tare (max), t |
23, 5 |
| Length along pulling faces of automatic couplers, mm |
14 720 |
| Length along tail boom pylons of frame, mm |
13 502 |
| Height from rail level, mm |
4 882 |
Hide

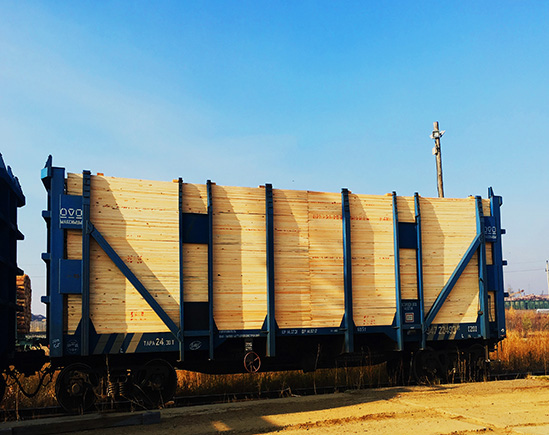

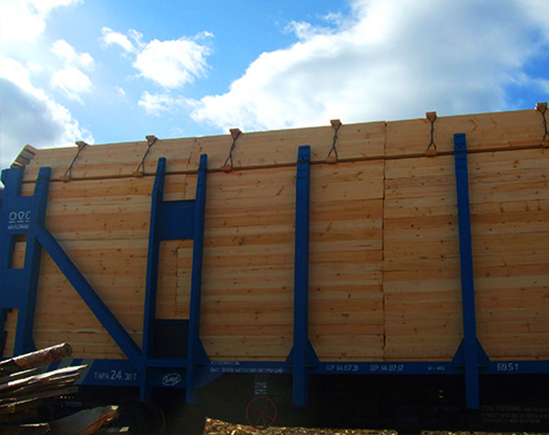

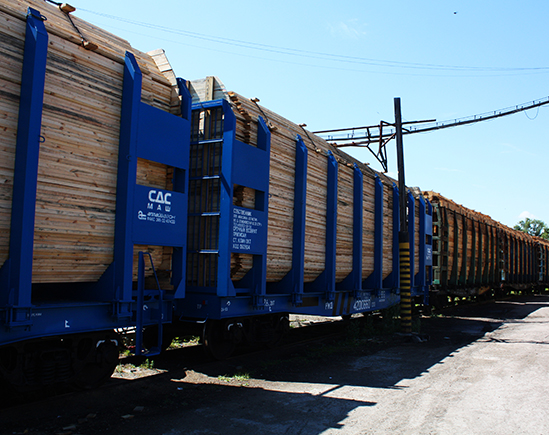

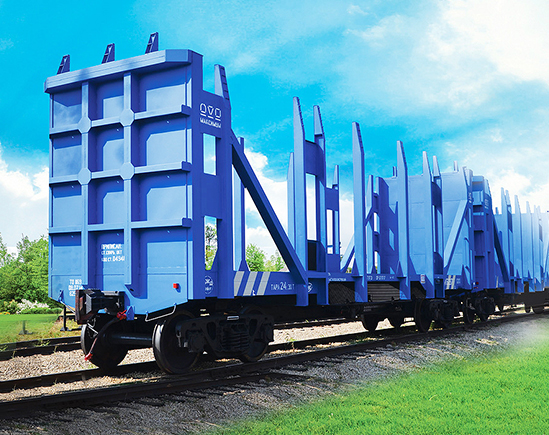

2000 model 13-9997 flatcars
Characteristics 13-9997
| flatcars 13-9997 |
|
| Purpose |
lumber and roundwood transportation |
| Load capacity, T |
69,5 |
| Cubic capacity, m3 |
111 |
| Maximum design load, kN |
230, 5 |
| Dimensions as per GOST 9238-83 |
1-Т, 02-ВМ |
| Wagon base, mm |
9 770 |
| Wagon tare (min), t |
24,1 |
| Wagon tare (max), t |
24, 5 |
| Length along pulling faces of automatic couplers, mm |
13 990 |
| Length along tail boom pylons of frame, mm |
12 772 |
| Кол-во торцевых стен, шт |
2 |
| Height from rail level, mm |
4 600 |
| Russian Railways’ discount on the loaded run rate |
sales 4 off (depending on distance) |
Hide

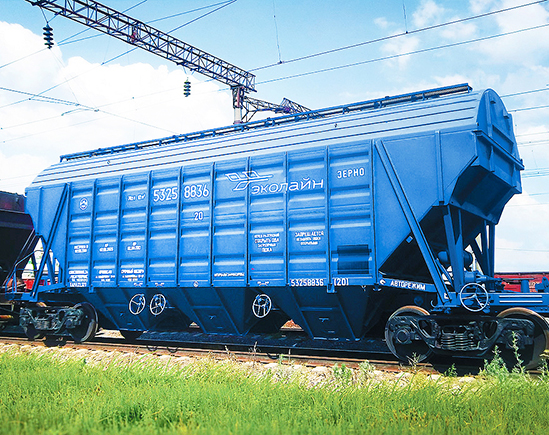

50 model 19-3054-04 grain wagons
Characteristics 19-3054-04
| grain wagons 19-3054-04 |
|
| Load capacity, T |
70,5 |
| Cubic capacity, m3 |
112 |
| Number of discharge chutes, PCs |
6 |
| Number of charging chutes, PCs |
4 |
| Maximum design load, kN |
235,0 |
| Dimensions as per GOST 9238-83 |
1-Т |
| Wagon base, mm |
10 500 |
| Wagon tare (min), t |
22,1 |
| Wagon tare (max), t |
23,5 |
| Length along pulling faces of automatic couplers, mm |
14 720 |
| Length along tail boom pylons of frame, mm |
13 500 |
| Height from rail level, mm |
5 000 |
Hide

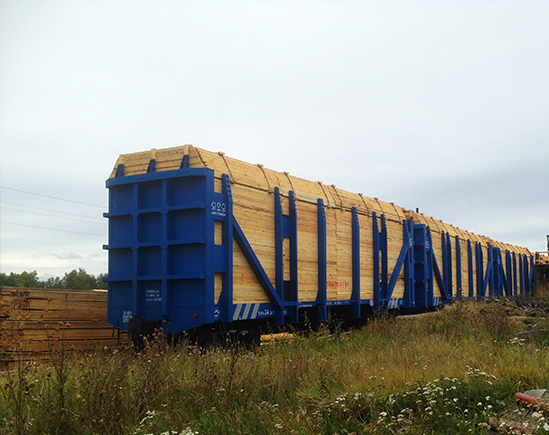

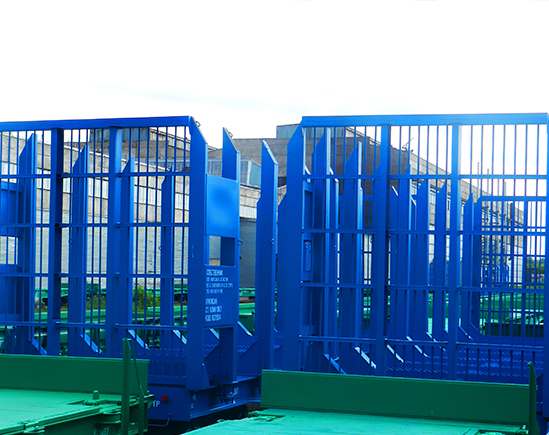

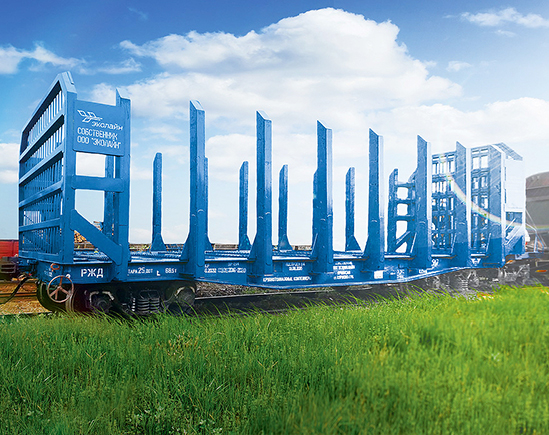

40 model 13-9924-01 flatcars
Characteristics 13-9924-01
| flatcars 13-9924-01 |
|
| Purpose |
Timber transportation |
| Load capacity, T |
68,5 |
| Cubic capacity, m3 |
114 |
| Maximum design load, kN |
230, 5 |
| Dimensions as per GOST 9238-83 |
1-Т, 02-ВМ |
| Wagon base, mm |
9 720 |
| Wagon tare (min), t |
24, 5 |
| Wagon tare (max), t |
25, 5 |
| Length along pulling faces of automatic couplers, mm |
14 620 |
| Length along tail boom pylons of frame, mm |
13 400 |
| Number of end walls, pcs. |
2 |
| Height from rail level, mm |
4 470 |
Hide

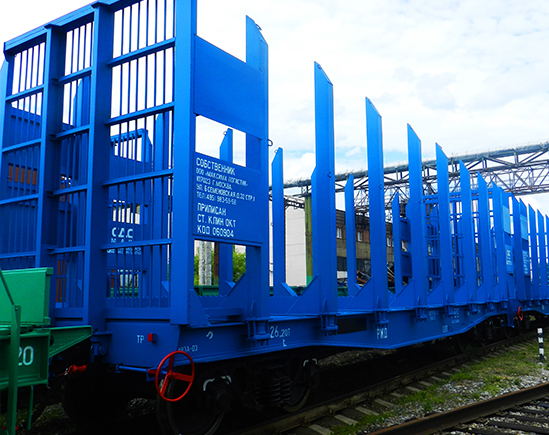

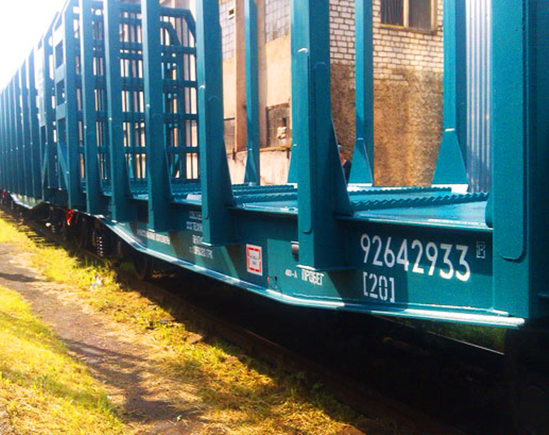

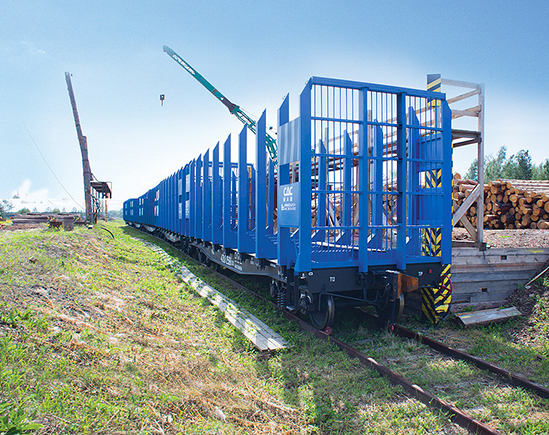

800 model 13-2114-07 flatcars
Characteristics 13-2114-07
| flatcars 13-2114-07 |
|
| Purpose |
Timber transportation |
| Load capacity, T |
66 |
| Cubic capacity, m3 |
109 |
| Maximum design load, kN |
230, 5 |
| Dimensions as per GOST 9238-83 |
1-Т |
| Wagon base, mm |
9 720 |
| Wagon tare (min), t |
26 |
| Wagon tare (max), t |
26, 7 |
| Length along pulling faces of automatic couplers, mm |
14 620 |
| Length along tail boom pylons of frame, mm |
13 400 |
| Number of end walls, pcs. |
2 |
| Height from rail level, mm |
1 250 |
Hide
